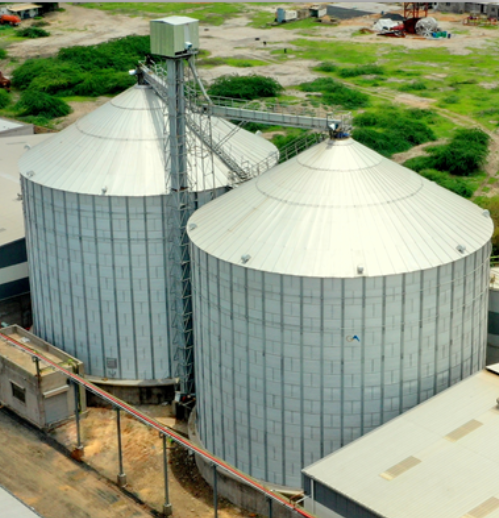

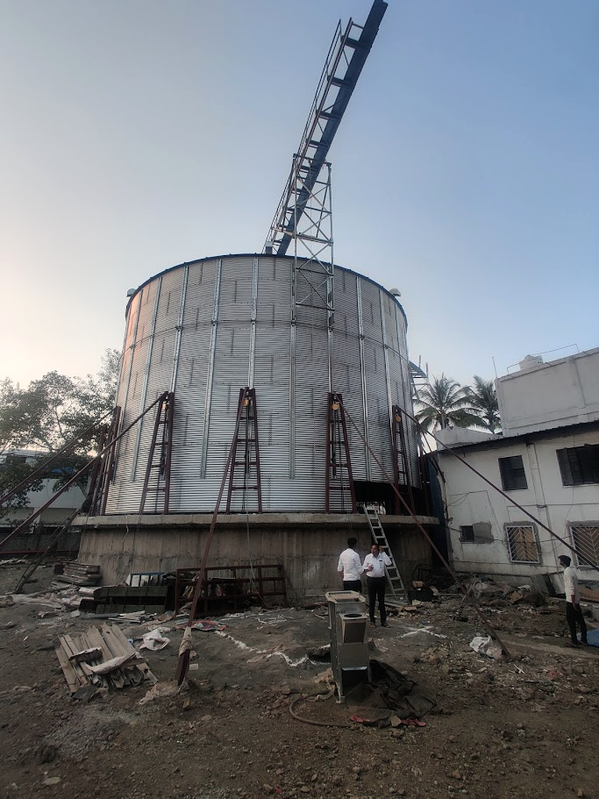

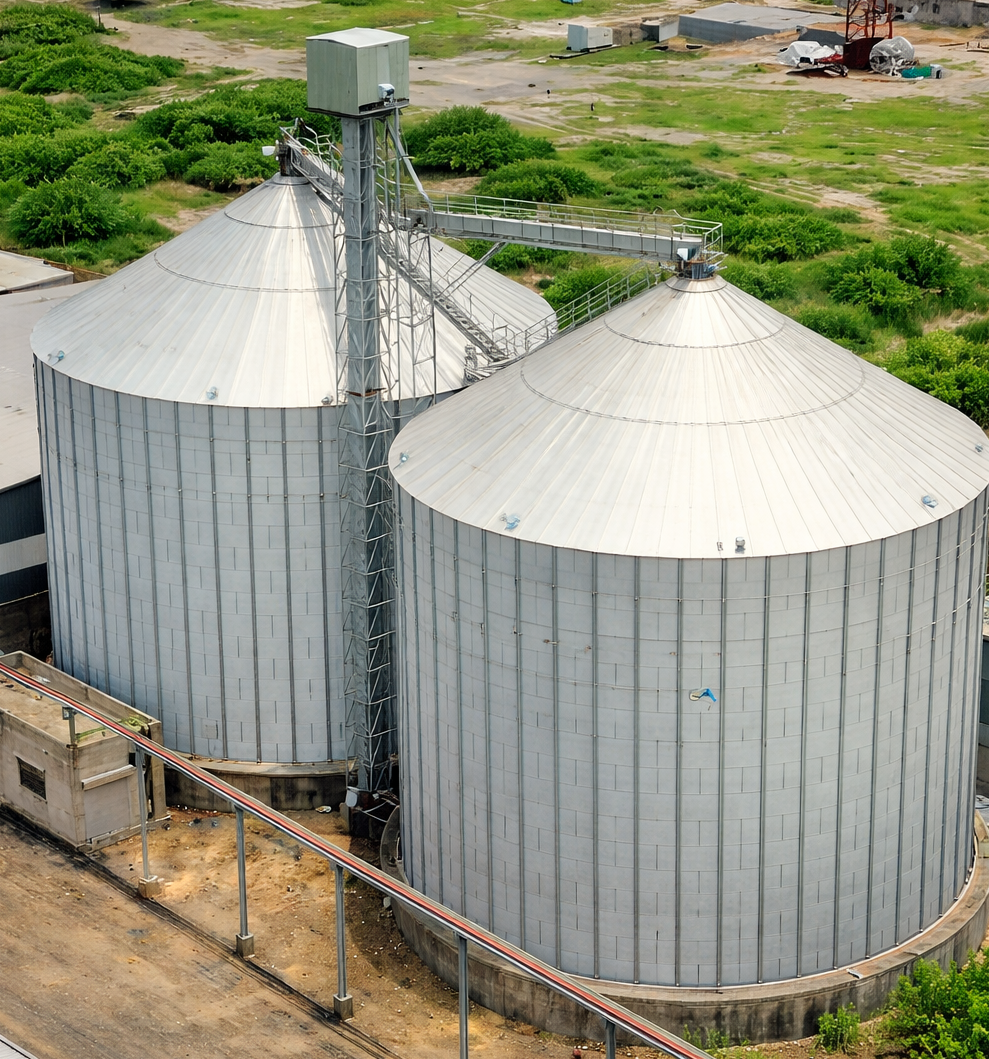

Flat bottom silos are used for bulk storage of material for longer duration with flat base. GranuAqua uses advance technology & rich quality material, so silos can withstand all type of environmental scenario. Silos are the revolutionary technology in the bulk storage industry as the area required for the storage of the heavy quantity of grains in a conventional system is much larger than silos.

Raw Material: GranuAqua manufactures in high quality Zincalume/Galvanized corrugated steel, with a 650 Gr/m² coating, ensuring a double service life.

Sealant: - Both Hot and Cold resistant mastic is used at joints of sidewall sheets to provide excellent sealing in all climatic conditions ensuring zero water percolation inside the silo.

Fasteners: - GranuAqua uses high tensile HDG Nuts & Bolts as per site requirement in order to ensure the maximum durability of sidewall joints, sheets and stiffeners.

Side Wall Sheet: - Side wall sheets are manufactured from Zincalume/GI, having more than 600 GSM coating of leading brands, which ensures guaranteed life of silos. Sinusoidal pitch depth of sheets is maintained at 16 mm, which increases the structural integrity of silos.

Versatility of Products: Varied Capacities ranging from 2.5m-38m diameter are designed and manufactured satisfying requirements of customers.

Structural Calculations: Silo design calculation are followed under different norm as ANSI – ASAE EP 433 2033, EUROCODE EN-1991-4, or many relevant design codes under experienced & professional design team.

Features:

GranuAqua Flat bottom silos are available in diameters from 2.5m-38m.

Load Analysis of structural stability is carried out considering seismic zone and wind loads in accordance with the geographical zone where the silos will be installed.

Wind load analysis is performed & considered as per the site location.

Tested & Rich quality materials are used during the production process of the silos.

GI/Zincalume steel sheets are used in the manufacturing of the silos, which are able to withstand Yield strength of 350MPa.

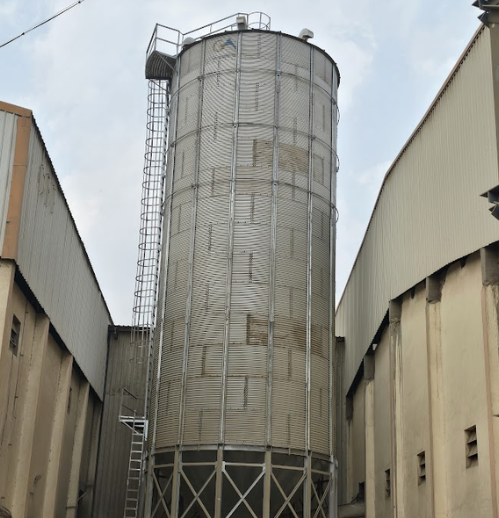

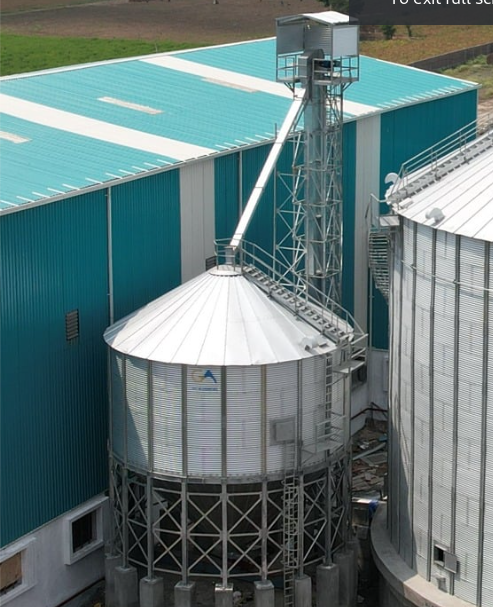

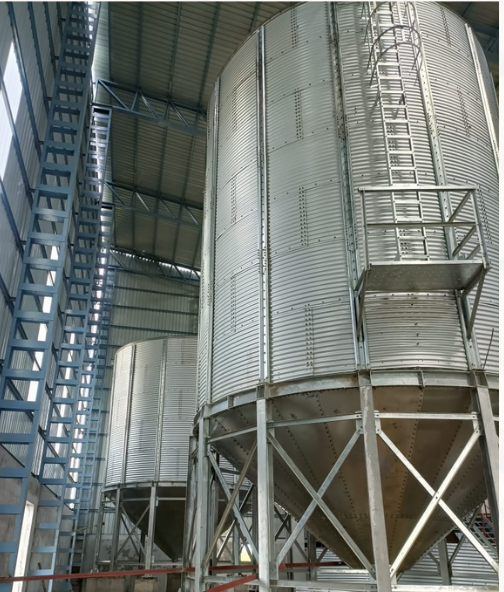

GranuAqua Hopper Bottom Silos are suitable for high storage at less space, continuous loading and unloading, segmentation, tempering and drying process requirements. Besides, hopper bottom silos prevent time, energy and monetary loses due to self-unloading hopper design.

Hopper angles vary from 37 º - 40 º - 45 º - 60º according to silo diameter, product type and product to be stored.

Hopper Silos are available with diameters from 2.50 m to 14.00 m and capacities up to 1829 m³. Due to the higher storage capacities, specially designed hopper structure and stiffeners easily bear the storage loads. The structure is durable with the support frame used for an equal load transfer to the ground.

Our structural and designing team is dedicated to new innovations and providing the best solutions for the projects on every level.

Your need of complete silo cleanout or you need less material handling costs, a GranuAqua Hopper Bottom Silos are an optimum solution. With more than 3” (75 mm) pitch corrugated steel wall sheets, a sturdy design, and high-quality materials, GranuAqua silos are stronger and more durable than the any other market competition. All wall sheets and stiffeners are manufactured from G330 coated steel (min. 650 gr/m2 zinc).

GranuAqua offers a wide range of quality features to provide you with many options for a custom-made bin. Hopper bottom silos are available in customized capacities and can store any flowable commodity such as grain, feed, wood or plastic pellets, certain mineral supplements and seed.

All the accessories with the core body of the storage bin are also well designed and accompany the silo to meet the specifications and client requirements.

Hopper Support Structures

Hopper support structures are available for hopper bottom bins from 2.74 m to 14.00 m) diameter. These structures provide safe and effective support of bins loading into trucks, rail cars or equipment.

Structures are made from hot-dip galvanized structural steel for years of maintenance-free service. The structures are a bolt-together design for easy on-site construction, preventing the need for welding. Single and double structures are available with the standard clear height below the structure.

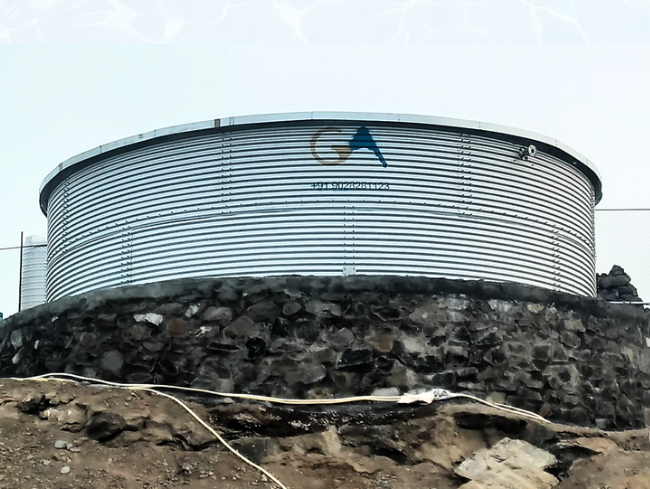

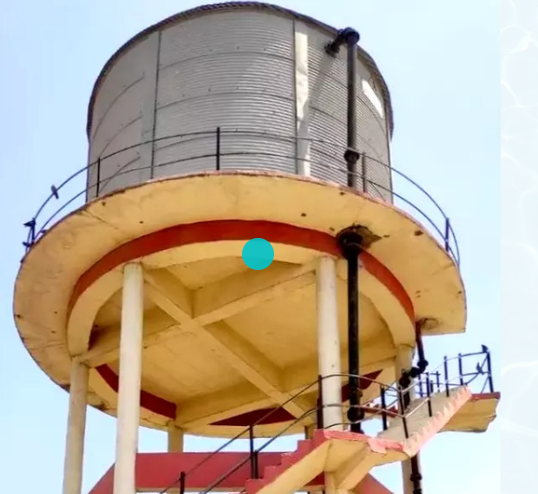

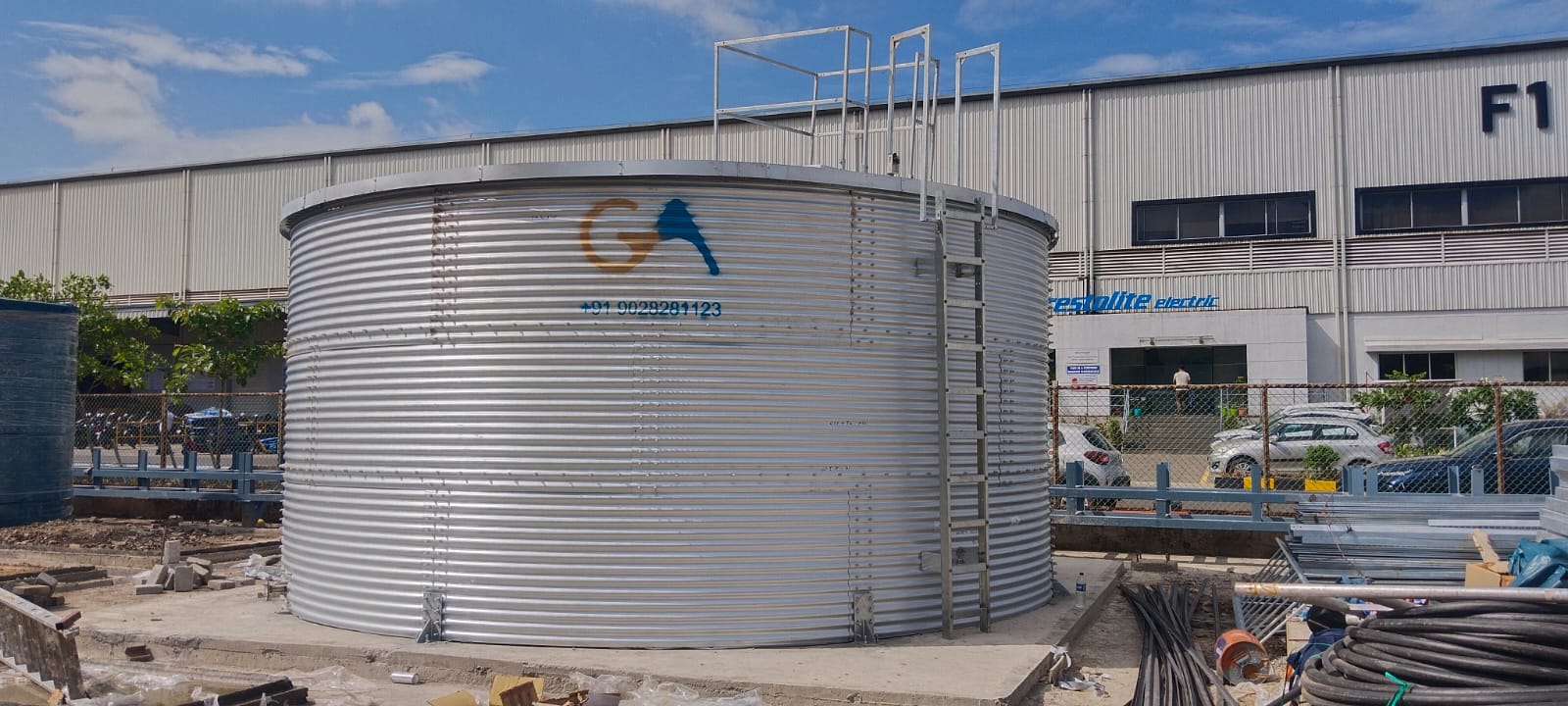

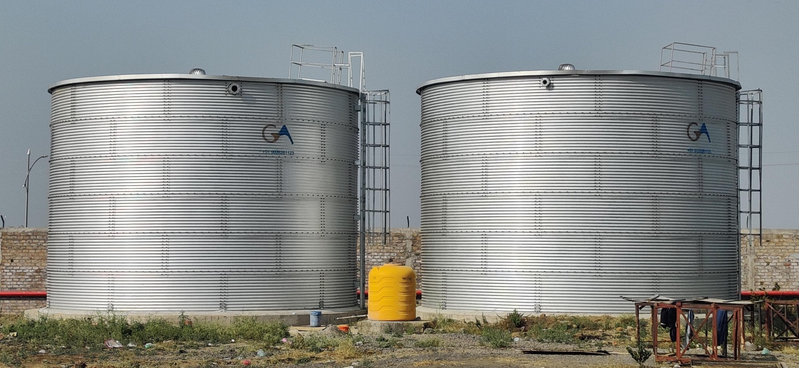

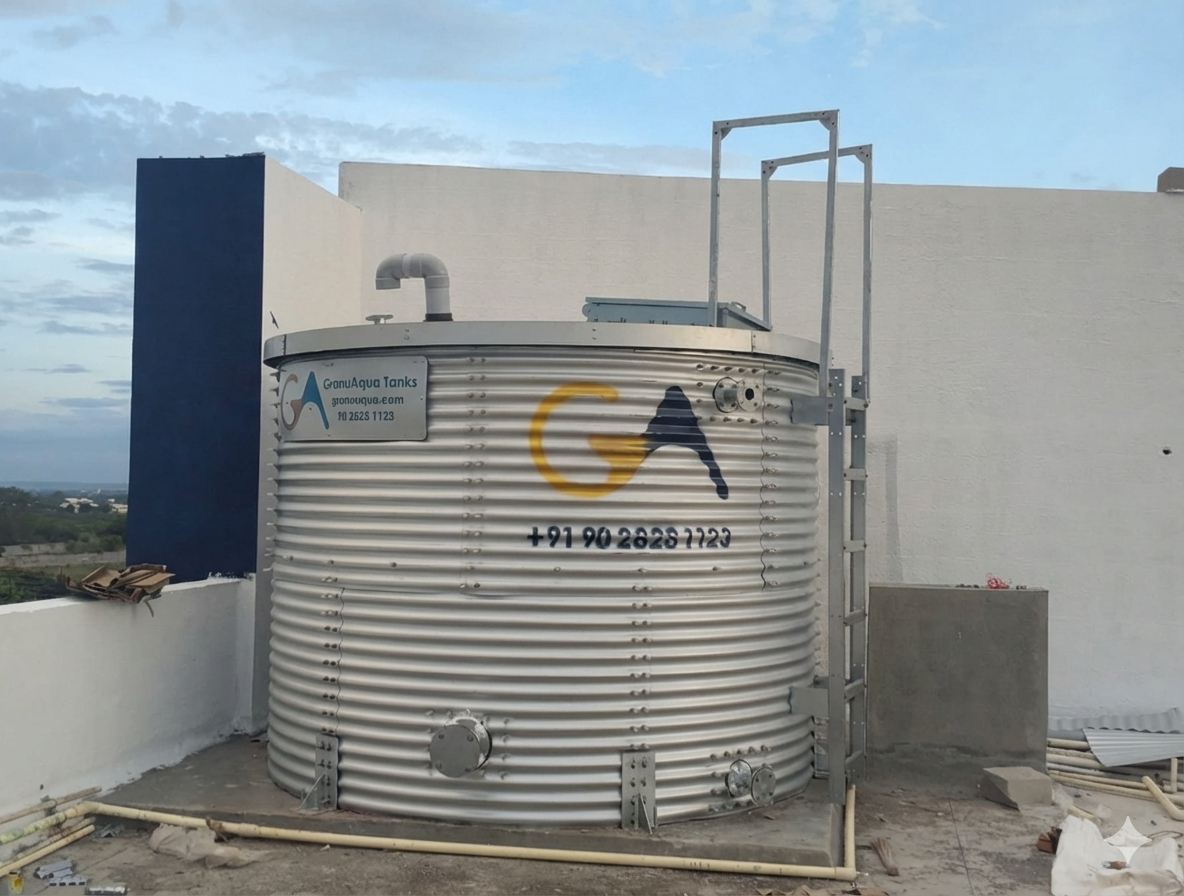

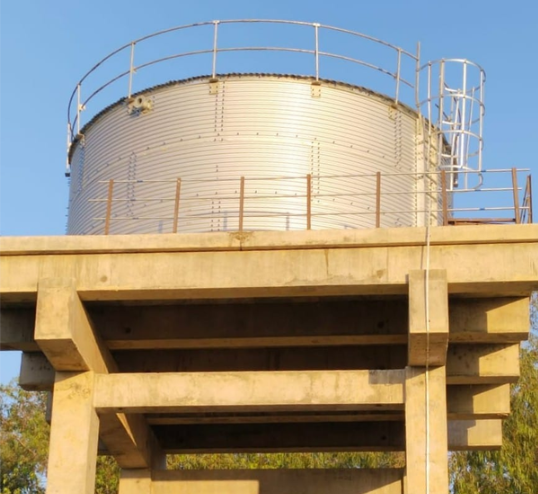

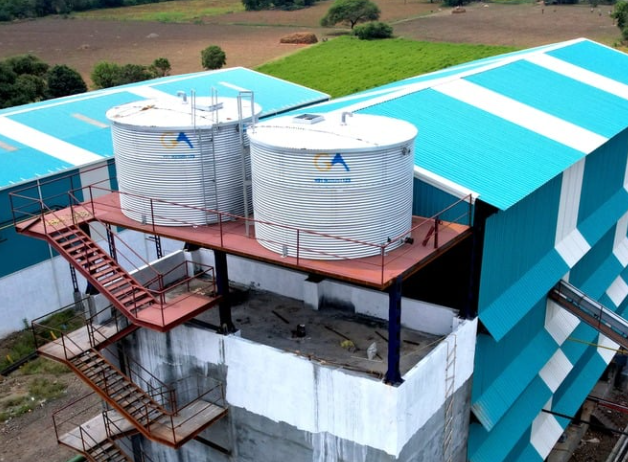

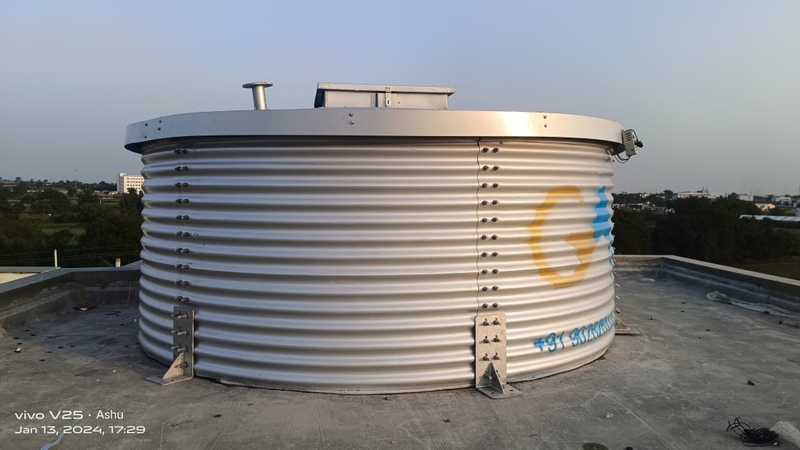

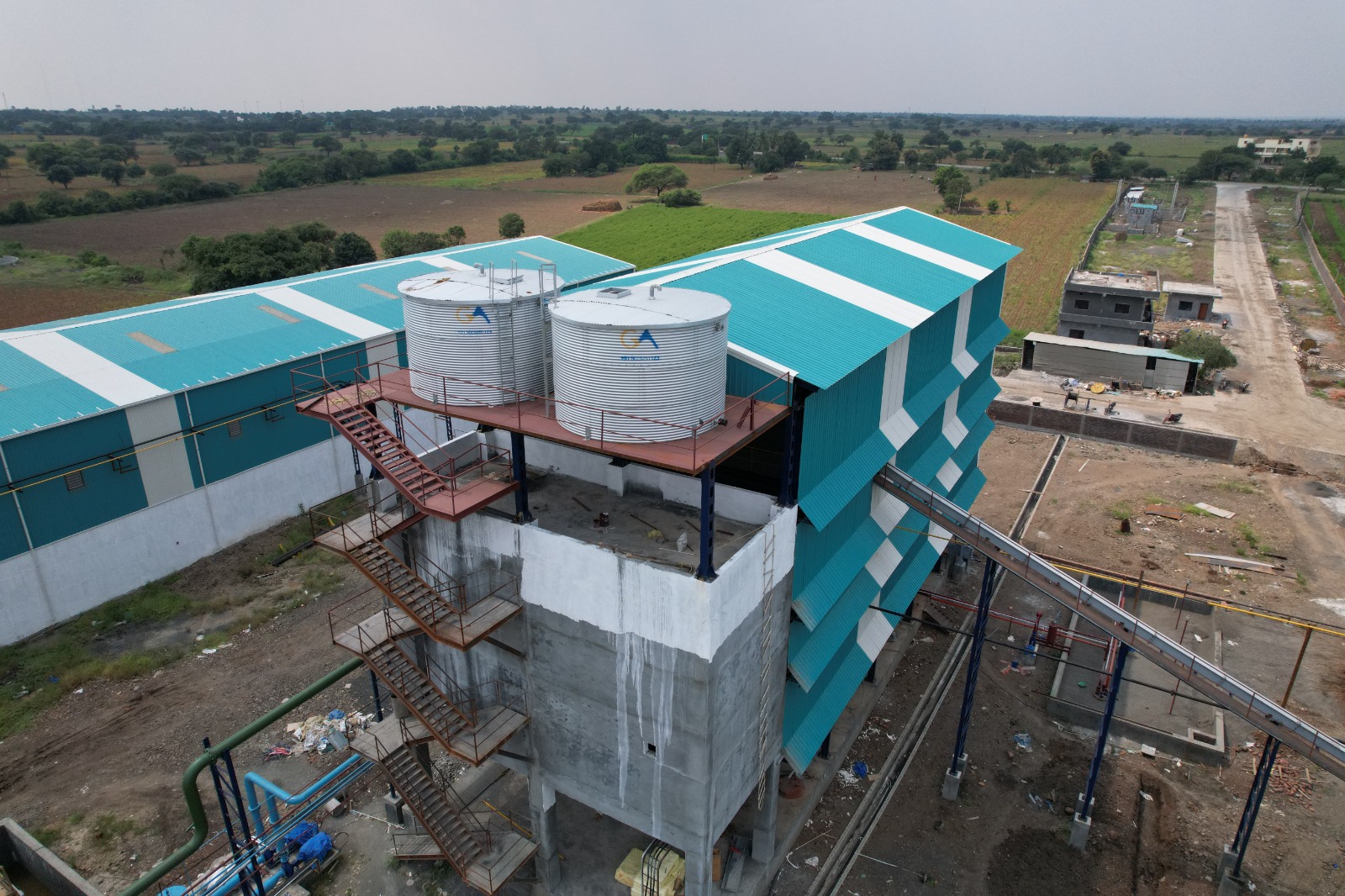

GranuAqua designs and manufactures water tank systems ranging from diameters 1.84 m – 36 m (5000 Liters - 50,00,000 Liters) and wall heights up to 20m depending on site conditions and construction permissions.

Our high-quality steel “Zincalume” exteriors wall sheets get the proven protection of hot-dipped zinc and resin coating.

Our pre-engineered water storage tanks have a flexible food grade liner, which is suspended inside the water tank form the top, forming a watertight membrane. Stored water never comes in contact with tank’s interior steel surface.

The outlet from the tank is provided as per the client requirements and the application for which the tank is being installed.

A scour drain can also be installed to drain every last drop of the liquid stored in side the tank. All the nozzles, flanges, outdoor staircase and all other metal fabricated parts are hot dip galvanized and have a good water and moisture resistance.

"Zincalume" steel tank materials and construction minimize corrosion levels and the need for frequent maintenance is least as compared to the market competitions.

The accessories available along with the tanks range from internal ladder, external ladder [with safety cage], external level indicator [digital / manual], temperature sensors, level sensors etc.

FEATURES AND BENEFITS

• Corrosion resistant
• Pre-Engineered Tank System
• Designed to meet custom needs
• We are specialized in such products that are cost effective since then it has developed and successfully implemented the bolted tanks concept in the Industry.
• Tanks would be 30 – 40 % cheaper than other products.
• Products are of high-quality design, better aesthetic and can be easily relocated, expandable with increase in height. Easy to lift and handle, can be installed almost anywhere.

GranuAqua is Indian firm, established with a great passion and aimed to deliver top-notch storage solutions. We are a team of highly qualified, experienced professionals & determined to revolutionize grain & water storage management.

We started our activities in Aurangabad- Maharashtra with the goal of offering solutions and latest technologies in the field of storage and grain handling, specifically storage silos, water tanks and its related equipment.

We manufacture products as per the approved industrial standards with best quality materials and cutting-edge robotic machinery. We source our material from reliable and professional market manufacturers all over the country, intending to deliver as per the specifications.

GranuAqua offers a varied range of services and automation engineering in order to provide our clients with unique task specific design to perform high-end processes.

We are equipped to offer the most competitive and technically sound products for both the local and international markets with the most competitive rates.

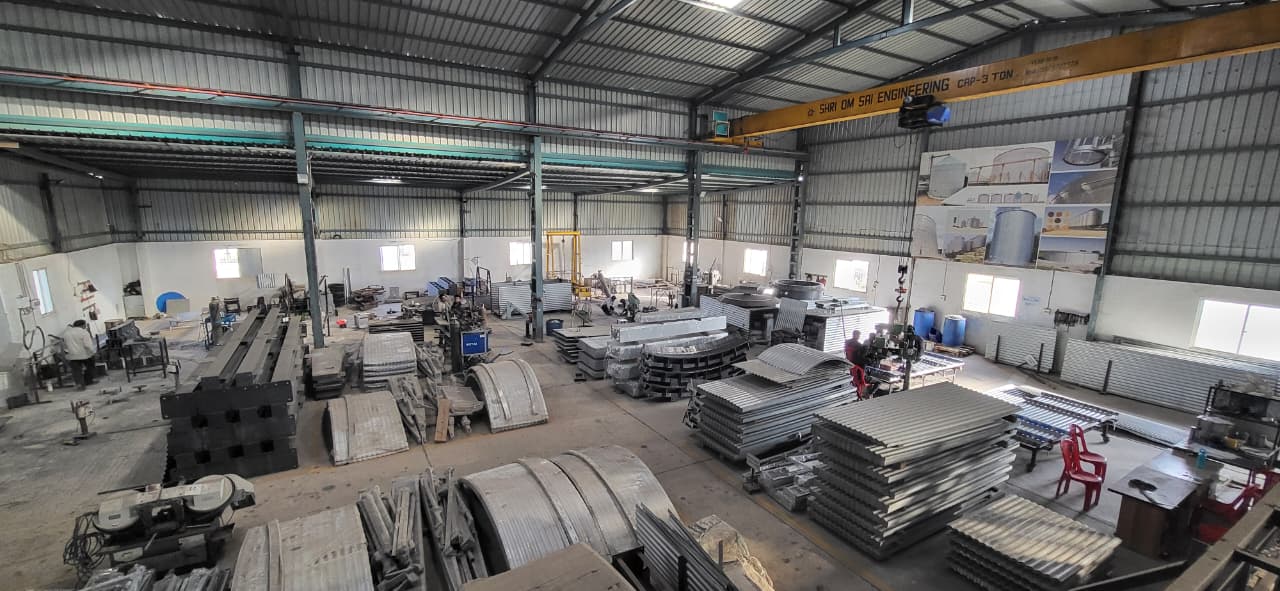

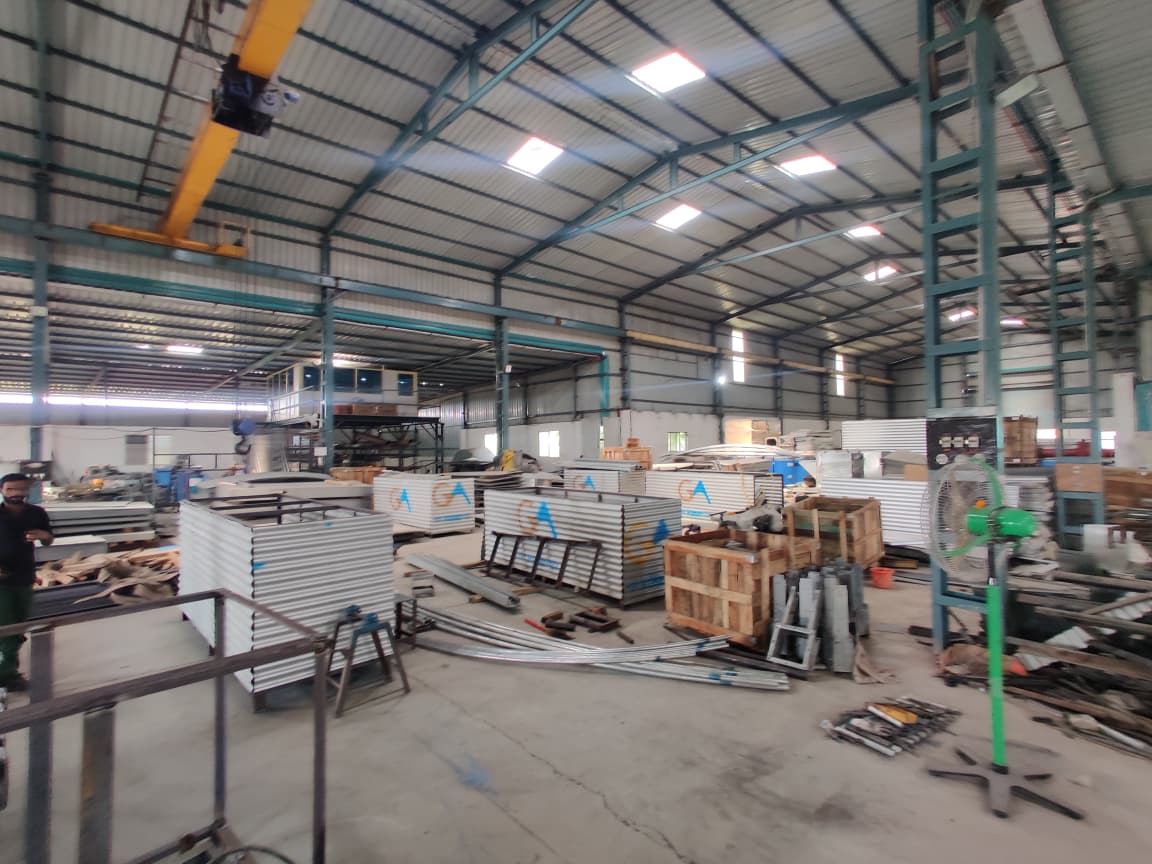

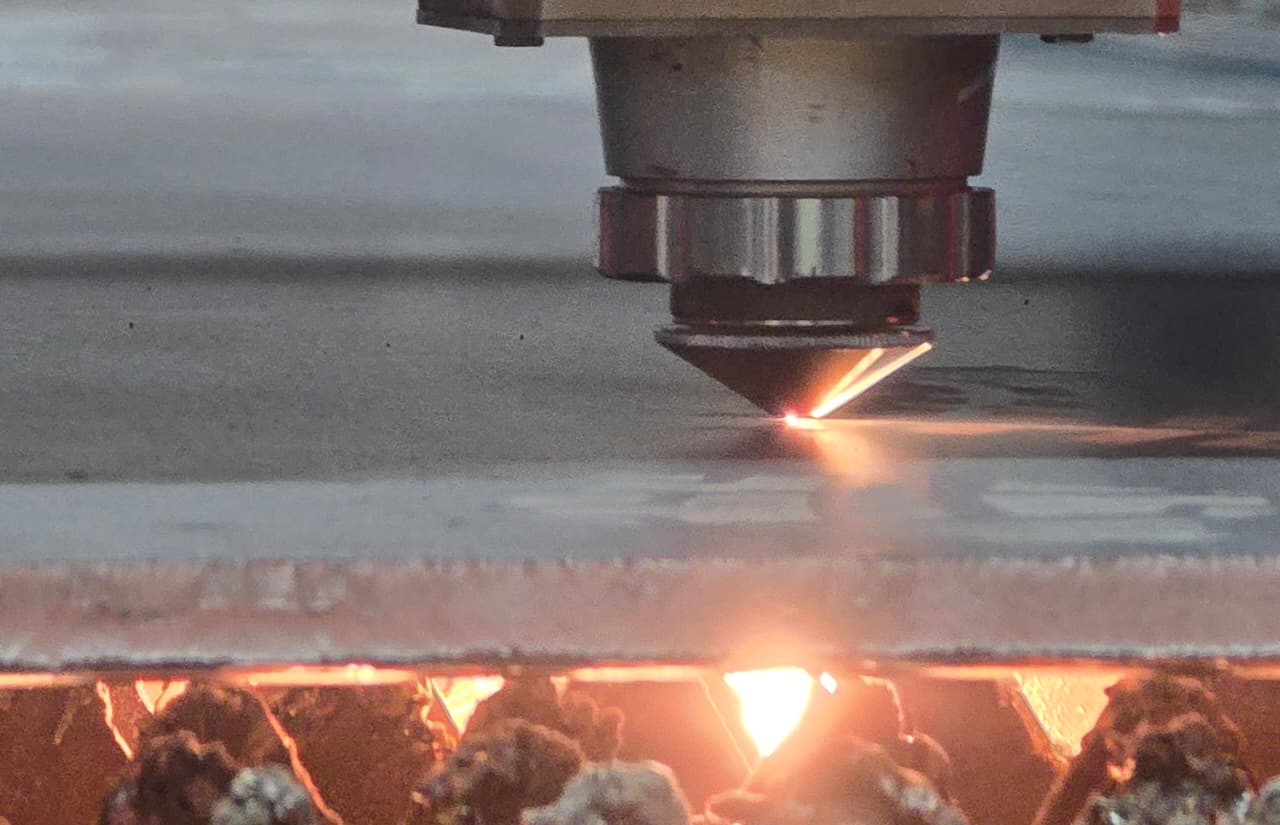

A quick and perfect production is guaranteed by the updated cutting-edge manufacturing lines according to the latest technology consisted by CNC laser cutting, fully automatic PLC enabled wall forming line, CNC Bending line and along with the high-quality raw material supplied from the world's best steel factories.

Our goal at GranuAqua is adding value to our customers and providing the best solutions for the product paid for.
